Ring Compressor / Regenerative Blower - Parts & Accessories


We offer a wide variety of Ring Compressor Parts and Ring Compressor Accessories.  Below is a small sample, or contact us for even more!

Ring Compressor Parts - View/Print Brochure

VFC084A, VFC100A thru VFC600A, VFC063P Thru VFC400P AND 504P Assembly Diagram VFC704A Thru VFC904A Assembly Diagram
VFC084A, VFC100A thru VFC600A, VFC063P thru VFC400P AND 508P
 Assembly Diagram		 VFC700A thru VFC904A Assembly Diagram

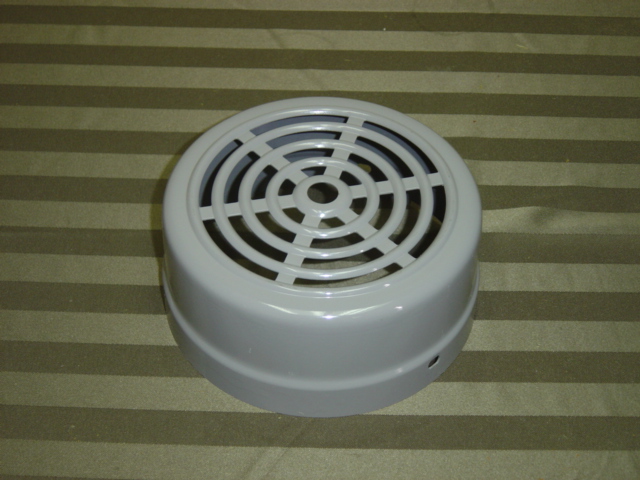

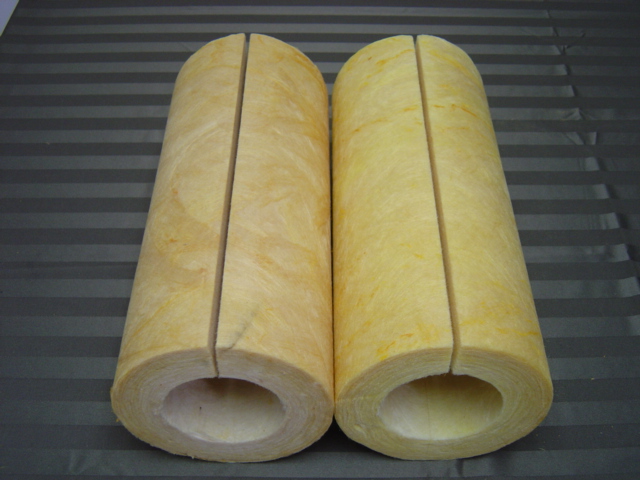

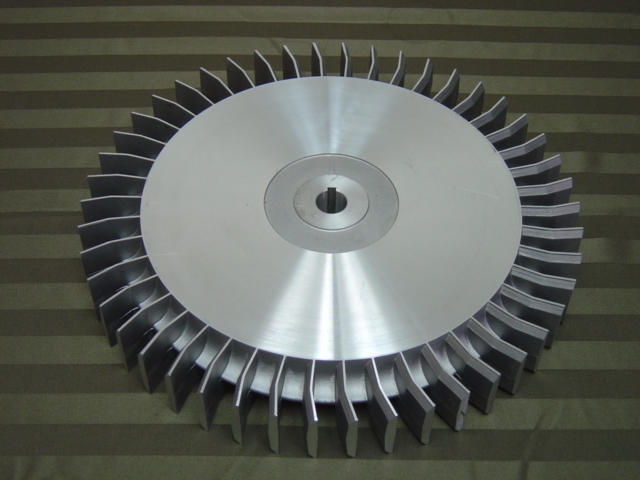

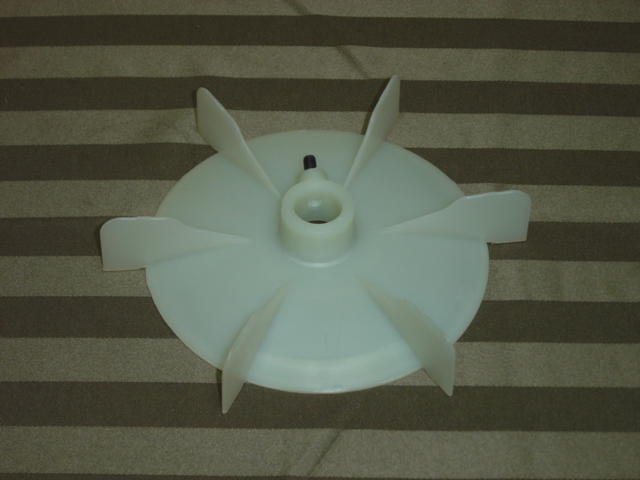

Impeller Motor Fan Motor Fan Cover Silencer Assembly for
VFC70, VFC80 and VFC90

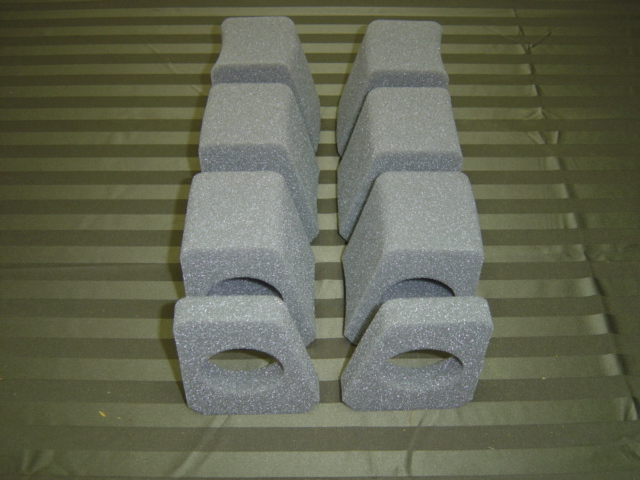

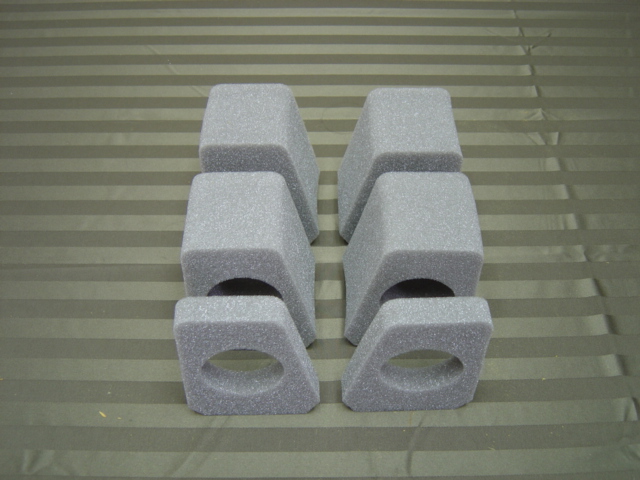

Silencer Assembly for

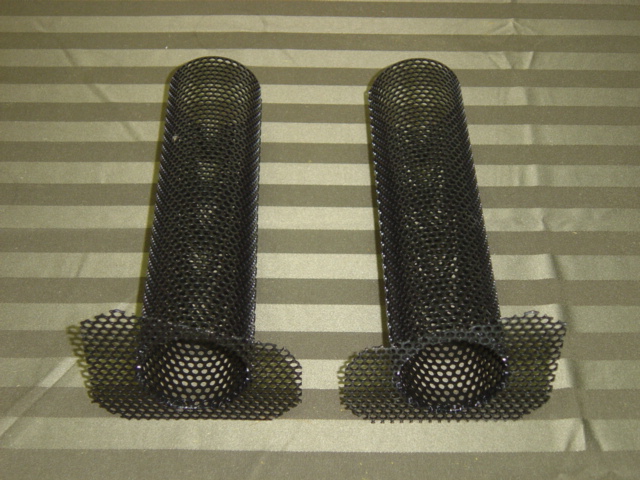

VFC20 - VFC50		 Silencer Assembly for VFC60 Silencer Retaining Nets for

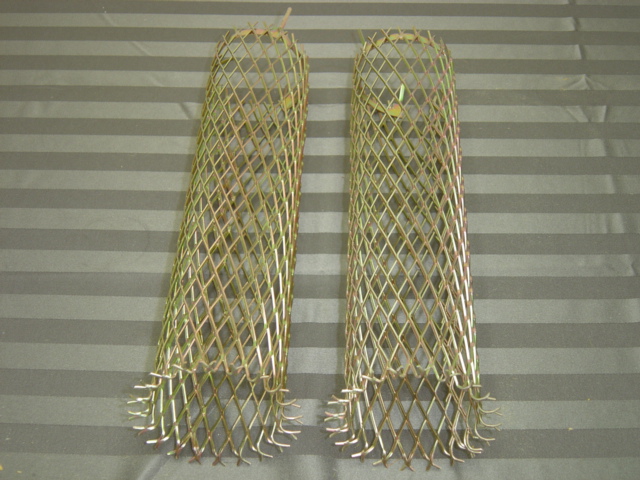

VFC20 - VFC60		 Silencer Retaining Nets for
VFC70, VFC80 and VFC90

Description

Model No.
VFC
084P		 VFC
100P		 VFC
200P		 VFC
300P		 VFC
400P		 VFC
084A		 VFC
100A		 VFC
200A		 VFC
300A		 VFC
400A		 VFC
500A		  VFC
 600A		 VFC
700A		 VFC
800A		 VFC
904A
Casing Cover [Fig #1-1] 8P101 1S101 2S101 3S101 4Q101 08P101 1S101 2S101 3S101 4Q101 5B101 6B101 7C101 8C101 9C101
Bolt-Casing Cover [Fig #1-2] 4P409 4Q409 1Q504 1Q504 4Q102 4P409 4Q409 1Q504 1Q504 4Q102 5A102 5A102 7A102 7A102 9A102
4P308 4P308 6A308
Impeller [Fig #1-3] 8P103 1Q103 2R103 3R103 4Q103 08P103 1Q103 2R103 3R103 4Q103 5C103 6C103 7C103 8C103 9C103
Casing [Fig #2-1] 8P201 1Q201 2S201 3R201 4B201 08P201 1S201 2R201 3R201 4B201 5C201 6D201 7C201 8C201 9C201
Bolt-Casing [Fig #2-2] - - - - - - - - - - - 6A202 7C202 8C202 9C202
Spring Washer [Fig #2-3] - - - - - - - - - - - 4P203 4P201 7A203 9C203
End Cover [Fig #2-4] 1P201 1Q204 2Q204 2Q204 4Q204 1P204 1Q204 2Q204 2Q204 4Q204 5C204 5C204 7A204 - -
Bolt-End Cover [Fig #2-5] 1P205 2P205 2P205 2P205 4Q205 1P205 2P205 2P205 2P205 4Q205 4P202 4P202 4P202 - -
Spring Washer [Fig #2-6] 1P203 2P206 2P206 2P206 2P206 1P203 2P206 2P206 2P206 2P206 2P203 4P203 4P203 4P203 4P203
Silencer Assembly (Suction & Pressure) [Fig #2-7] 1Q207 1Q207 2Q207 3Q207 4Q207 1Q207 1Q207 2Q207 3Q207 4Q207 5B207 6B207 7C207 8C207 9C207
Flange [Fig #2-8] 8P208 1Q208 2R208 3Q208 4Q208 08P208 1Q208 2R208 3Q208 4Q208 5C208 6B208 - - -
Bolt-Flange [Fig #2-9] 4R209 4Q205 2P205 2P205 4Q209 4R209 4Q205 2P205 2P205 4Q209 5C209 2P205 - - -
Gasket-Flange [Fig #2-10] - 1P210 1P210 3P210 4P210 - 1P210 1P210 3P210 4P210 5A210 6A210 6A210 - -
Threaded Flange [Fig #2-11] - 1P211 1P211 3P211 4P211 - 1P211 1P211 3P211 4P211 4P211 6A211 6A211 8A211 9A211
Bolt-Threaded Flange [Fig #2-12] - 1Q212 1Q212 3Q212 7A407 - 1Q212 1Q212 3Q212 7A407 7A407 6B212 6B212 9A422 9C212
Shaft Seal [Fig #2-14] - 1R214 2P214 2P214 4P214 - 1R214 2P214 2P214 4P214 5C214 5C214 7A214 8A214 9A214
Silencer Retaining Net (Suction) [Fig #2-15] - - - - 4R215 - - - - 4R215 5C215 6E215 7C215 8C215 9C215
Silencer Box [Fig #2-16] - - - - - - - - - - -   7C216 8C216 9C216
Bolt-Silencer Box [Fig #2-17] - - - - - - - - - - -   7A407 8C217 8A217
Lifting Bolt [Fig #2-18] - - - - - - - - - - 5A218 6A218 7A218 6A218 7A218
Washer-Silencer Box [Fig #2-20] - - - - - - - - - - -   7A203 9C203 9C220
Silencer Retaining Sheath (Suc/Pres) [Fig #2-21] - - - - - - - - - - -   7C221 8C221 9C221
Silencer Retaining Net (Pressure) [Fig #2-22] - - - - 4R222 - - - - 4R222 5C222 6C222 7C215 8C215 9C215
Rotor & Shaft Assembly [Fig #3-1] 8P301 1S301 2S301 3S301 4S301 08A301 1B301 2C301 3C301 4E301 5E301 6E301 7D301 8D301 9D301
Bearing-Rear [Fig #3-6] 1P304 2P304 2P304 2P304 4P304 1P304 2P304 2P304 2P304 4P304 5A305 5A305 7A304 8A304 8A305
Bearing-Front [Fig #3-5] 1P304 2P304 2P304 2P304 4P304 1P304 2P304 2P304 2P304 4P304 5D305 5D305 7D305 8D305 9D305
Bearing Shim [Fig #3-6] 1P306 1P306 2P306 2P306 2P306 1P306 1P306 2P306 2P306 2P306 5C306 6C306 7A306 8A306 9A306
Plate Retaining [Fig #3-7] 1Q307 1Q307 2Q307 2Q307 4Q307 1Q307 1Q307 2Q307 2Q307 4Q307 5B307 6A307 6A307 8A307 8A307
Bolt-Impeller [Fig #3-8] 1P308 1P308 2P308 2P308 4P308 1P308 1P308 2P308 2P308 4P308 4P308 6A308 6A308 8A308 8A308
Tab Washer [Fig #3-9] 1P309 1P309 2P309 2P309 2P309 1P309 1P309 2P309 2P309 2P309 2P309 6A309 6A309 8A309 8A309
Pin [Fig #3-10] - - - - - - - - - - -   - 8A310 8A310
Key-Impeller [Fig #3-11] 8P311 1P311 2P311 2P311 4P311 08P311 1P311 2P311 2P311 4P311 5B311 6A311 7A311 8A311 9A311
Motor Fan [Fig #3-12] 8P312 - 2S312 2S312 4S312 08P312 - 2S312 2S312 4S312 5D312 6D312 7D312 8D312 9D312
Bolt-Motor Fan [Fig #3-13] 8P313 - 2S313 2S313 2S313 08P313 - 2S313 2S313 2S313 2S313 2S313 - - -
Collar [Fig #3-15] - 2P315 2P315 2P315 4P315 - 2P315 2P315 2P315 4P315 -   - 8C315 9C315
Retaining Rings-C Type [Fig #3-17] - - - - - - - - - - -   7D317 7D317 9D317
Frame for Stator & Protector Assy-High Volt [Fig #4-1] 8S401 1T401 2T401 3S401 4S401 8A4014 1E401 2E401 3D401 4E401 5E401 6E401 7D401 8D401 9D401
Frame for Stator & Protector Assy-Low Volt [Fig #4-1] - - - - - 8A4012 - - - - - 6E401 - - -
Rear Housing [Fig #4-4] 8P404 1T404 2P404 2P404 4D404 08P404 1T404 2P404 2P404 4D404 5D404 6D404 7C404 8C404 9C404
Spring Washer [Fig #4-5] 8P405 2P405 2P405 2P405 4P405 08P405 2P405 2P405 2P405 4P405 5C405 5C405 7A405 8A405 9A405
Bolt-Rear Housing [Fig #4-7] - - - - - - - - - - - 5A202 7C407 6A308 9C407
Motor Fan Cover [Fig #4-8] 8P408 - 2S408 3S408 4S408 08P408 - 2S408 3S408 4S408 5D408 6D408 7D408 8D408 9D408
Bolt-Fan Cover [Fig #4-9] 8P409 - 2S409 2S409 4S409 08P409 - 2S409 2S409 4S409 2S409 2S409 2S409 8D409 8D409
Bolt-Frame [Fig #4-13] 8P413 2P413 2P413 3P413 4B413 08P413 2P413 2P413 3P413 4D413 5D413   - - -
Nut Frame [Fig #4-14] 2P414 2P414 2P214 2P214 9A515 2P414 2P414 2P214 2P414 9A515 9A515   - - -
Spring Washer [Fig #4-15] 1P203 1P203 1P203 1P203 2P206 1P203 1P203 1P203 1P203 2P206 2P206 4P203 4P203 7A203 9C203
Bolt-Bearing Retainer Front [Fig #4-19] - - - - - - - - - - -   - 8C409 9C419
Bearing Retainer-Front [Fig #4-20] - - - - - - - - - - -   - 8C420 9C420
Front Frame Cover [Fig #4-24] - - - - - - - - - - -   7C424 8C424 9C424
Terminal Box [Fig #5-1] 1S501 1S501 1S501 1S501 4S501 1S501 1D501 1D501 1D501 4D501 1D501 6D501 6D501 8D501 9D501
Capacitor Assembly [Fig #6-1] 8S601 1T601 2T601 3T601 4T601 - - - - - -   - - -
Hose-Flange [Fig #7-1] - 1P701 1P701 3P701 4P701 - 1P701 1P701 3P701 4P701 4P701 6A701 - - -
Bolt-Hose Flange [Fig #7-2] - 2P308 2P308 3Q702 3Q702 - 2P308 2P308 3Q702 3Q702 3Q702 8A308 - - -

Aspirators

Designed for use with efficient, high volume, low pressure ring compressors. Aspirators create an effective method for disposal of lightweight materials such as textile trim, paper trim, film, dust, and a variety of other materials. Material is then conveyed to a remote receiver.

Model
CA125 Please Consult Cary Mfg.
for ring compressor and aspirator
combinations for particular applications.
CA150
CA200
CA250
CA300
Ring Compressor Aspirator

Conveying Eductors

Connected to output of any ring compressor to provide suction and maintenance-free transport of granular or bulk solids, mist, particle-laden vapors, etc.



 Ring Compressor Conveying Eductor

Flanges

For direct connection of inlet or outlet hoses.

Model Part No. Y X Bolt Part No.
100A(P), 200A(P) 1P701 1.50 1.25 2P308
300A(P) 3P701 1.06 1.25 3Q702
VFC400A(P) 4P701 500 2.00 3Q702
VFC500A, 500P 5B701 2.00 2.00 3Q702
VFC600A 6A70 1.08 2.50 8A308
Ring Compressor Flange

Inlet Filters / Covers

Designed to protect ring compressor by filtering inlet air when compressor output air/pressure is used. Filter has a perforated outer cylinder wrapped with a fine (.009") mesh screen. Disposable covers are made of 100% polyester fibers, 7/8" thick filter media in order to provide excellent dust protection.

Filter Cover Ring Compressor A B C
F-123 C-123 100, 200, 300 7-3/8" 3-7/8" 1-1/4" NPT
F-45 C-45 400, 500, 500 8" 5-1/8" 1-1/2" NPT
F-67 C-67 600A, 700A 14" 5-1/8" 2" NPT
F-89 C-89 800A, 904A 23-1/2" 8-1/4" 3" NPT
Ring Compressor Inlet Filters & Covers


Inline Filter Traps

6" diameter plastic filters with a perforated metal basket available in 12" or 24" lengths. Filter traps used with ring compressors through 704A for trapping lint, string, etc. 1-1/2" and 2" hose connections available.

Model X Y
TX1215 1-1/2" 12"
TX1220 2" 12"
TX2420 2" 24"
Ring Compressor Inline Filter Trap


Silencers

Provides for "quieted" operation of ring compressors in environments where noise levels are critical.

Model Part No. W Y X Z
100A(P), 200A(P) VFY021A 1.19 2.02 11.81 1" NPSC
300A(P) VFY023A 1.58 2.52 11.81 1-1/4" NPSC
VFC400A(P), VFC500A, 508P VFY024A 1.58 3.03 11.81 1-1/2" NPSC
VFC600A VFY026A 1.77 3.97 15.75 2" NPSC
VFC700A VFY026A 1.77 3.97 15.75 2" NPSC
VFC800A VFY028A - 5.52 20.47 2-1/2" NPSC
VFC904A VFY029A - 6.50 26.38 3" NPSC
Ring Compressor Silencer


Vacuum Booster

Allows utilization of ring compressor in a "no-flow" vacuum for use with suction cups and in other industrial "hold down" applications. Booster permits flow of necessary cooling air thru ring compressor and boosts critical "dead head" level by 10 to 15%.

Model Ring Compressor
VB45 VFC400 - VFC500 Specify Ring Compressor
to be used.
VB67 VFC600 - VFC700
Ring Compressor Vacuum Booster


Vacuum / Pressure Relief Valves

The Cary Vacuum and Pressure Relief Valves are designed to protect Ring Compressors from overheating either in a vacuum or pressure ("deadhead") condition. Valves are preset to provide protection for each Ring Compressor. Or, Valves are adjustable to provide down to approximately 65% "deadhead" vacuum or pressure. Valves for Fuji Models VFC300A, VFC400A, VFC500A are 1-1/2" NPT size. Valves for Models VFC600A, VFC700A, and VFC800A are 2" NPT. Valves should be checked periodically to assure proper setting.



 Ring Compressor Vacuum / Pressure Relief Valve
Vacuum Pressure
Model Ring Compressor Factory Set H2O Adjustment
VV3 300 39" 39" to 25"
VV4 400 42" 42" to 27"
VV5 500 60" 60" to 39"
VV6 600 86" 86" to 55"
VV7 700 85" 85" to 56"
VV8 800 100" 100" to 65"

VV9

 904 97" 97" to 75"
Model Ring Compressor Factory Set H2O Adjustment
PV3 300 42" 42" to 27"
PV4 400 46" 46" to 29"
PV5 500 68" 68" to 44"
PV6 600 100" 100" to 65"
PV7 700 98" 98" to 64"
PV8 800 127" 127" to 82"
PV9 904 120" 120" to 82"


Vacuum Receiver - Filtered

Steel receivers of 18 Ga. or 16 Ga. steel. Filter is attached to removable receiver top. Filter is constructed of fine (.009") mesh screen wrapped around perforated cylinder. Inlet dust covers can be used for dust retention. Fiberglass screen collection bag is provided. Receiver is designed for ring compressors through 500A series. Available with (as pictured) or without motor/receiver support stand. 1-1/2" or 2" hose connections are available.

Model Part No. X Y
R15P1.5 15 Gal. w/ 1-1/2" inlet, outlet 15 26
R15PS1.5 15 Gal. w/ 1-1/2" inlet, outlet; including stand 15 40
R30P1.5 30 Gal. w/ 1-1/2" inlet, outlet 19 30
R30P2.0 30 Gal. w/ 2" inlet, outlet 19 30
R30PS1.5 30 Gal. w/ 1-1/2" inlet, outlet; including stand 19 47
R30PS2.0 30 Gal. w/ 2" inlet, outlet; including stand 19 47

Ring Compressor Filtered Vacuum Receiver

Applications: For medium weight, low volume materials, wood chips, saw dust, light metal chips, dust and dirt where large filter area is not required.



Vacuum Receiver - High Filtration

Steel receivers of 16 Ga. steel supplied with perforated metal inner cylinder for support of canton flannel canvas filter bag. Design effectively makes entire inner surface of receiver into a high capacity filter for maximum filtration. Inexpensive reusable disposable bag is available for easy removal of material from receiver. Inlet and outlet are 2" or 2-1/2" hose.

Applications: Designed for light weight materials such as textile lint and dust. Can be used for powders, pellets, etc., but volume material would need to be limited due to lifting material to be dumped. Do not use for wet conditions.

Model X Y
FR-30 19 30
FR-55 23 36



 Ring Compressor High Filtration Vacuum Receiver


Ring Compressor Accessories


Fuji Part Number Description For Ring Compressor
FR-30FB Canvas Filter Bag 30 Gallon
FR-55FB Canvas Filter Bag 55 Gallon

FR-30DRB Disposable Reusable Bag 30 Gallon
FR-55DRB Disposable Reusable Bag 55 Gallon

FS-45E Element for Inlet Filter - Silencer (FS-45) VFC40-VFC50 Series/Special Filters
FS-67E Element for Inlet Filter - Silencer (FS-67) VFC60-VFC70 Series/Special Filters
FS-89E Element for Inlet Filter - Silencer (FS-89) VFC80-VFC90 Series/Special Filters
IVF-01E Element for Inlet Filter - Silencer (IVF-01) VFC06 to VFC10 Series/Special Filters
FS-123E Element for Inlet Filter-Silencer (FS-123) VFC06 to VFC30 Series/Special Filters
IVF-23E  Element for Inline Vacuum Filter (IVF-23) VFC20-VFC30 Series/Special Filters
IVF-45E Element for Inline Vacuum Filter (IVF-45) VFC40-VFC50 Series/Special Filters
IVF-67E Element for Inline Vacuum Filter (IVF-67) VFC60-VFC70 Series/Special Filters
IVF-89E Element for Inline Vacuum Filter (IVF-89) VFC80-VFC90 Series/Special Filters

24x24x2 Filter Element for Vacuum Box System Special Filters
239P Filter Element with Pre-Filter 10 Microns Special Filters

R15P1.5 Filter Vacuum Receiver (Units include F-67 & C-67) 15 Gallon Receiver with 1 1/2" Inlet
R15P2.0 Filter Vacuum Receiver (Units include F-67 & C-67) 15 Gallon Receiver with 2.0" Inlet
R15PS1.5 Filter Vacuum Receiver (Units include F-67 & C-67) 15 Gallon Receiver with Stand and Hoses
R15PS2.0 Filter Vacuum Receiver (Units include F-67 & C-67) 15 Gallon Receiver with Stand and Hoses
R30P1.5 Filter Vacuum Receiver (Units include F-67 & C-67) 30 Gallon Receiver with 1 1/2" Inlet
R30P2.0 Filter Vacuum Receiver (Units include F-67 & C-67) 30 Gallon Receiver with 2.0" Inlet
R30PS1.5 Filter Vacuum Receiver (Units include F-67 & C-67) 30 Gallon Receiver with Stand and Hoses
R30PS2.0 Filter Vacuum Receiver (Units include F-67 & C-67) 30 Gallon Receiver with Stand and Hoses

FR-30 High Filtration Receiver 30 Gallon Receiver
FR-55 High Filtration Receiver 55 Gallon Receiver

F-123 Inlet Filter Assembly 200 Micron Filtration VFC06 to VFC30 Series
F-45 Inlet Filter Assembly 200 Micron Filtration VFC40-VFC50 Series
F-67 Inlet Filter Assembly 200 Micron Filtration VFC60-VFC70 Series
F-89 Inlet Filter Assembly 200 Micron Filtration VFC80-VFC90 Series

FS-45 Inlet Filter with Element - Silencer - 10 Micron Filtration VFC40-VFC50 Series/Special Filters
FS-67 Inlet Filter with Element - Silencer - 10 Micron Filtration VFC60-VFC70 Series/Special Filters
FS-89 Inlet Filter with Element - Silencer - 10 Micron Filtration VFC80-VFC90 Series/Special Filters
FS-123 Inlet Filter with Element - Silencer - 10 Micron Filtration VFC06-VFC30 Series/Special Filters

6012-1.5 (TX1215) Inline Filter Trap; 1-1/2" Inlet, 12" Long
6024-1.5 (TX2415) Inline Filter Trap; 1-1/2" Inlet, 24" Long
6012-2.0 (TX1220) Inline Filter Trap; 2" Inlet, 12" Long

IVF-01 Inline Vacuum Filter with Element - 10 Micron Filtration VFC06-VFC10 Series/Special Filters
IVF-23 Inline Vacuum Filter with Element - 10 Micron Filtration VFC20-VFC30 Series/Special Filters
IVF-45 Inline Vacuum Filter with Element - 10 Micron Filtration VFC40-VFC50 Series/Special Filters
IVF-67 Inline Vacuum Filter with Element - 10 Micron Filtration VFC60-VFC70 Series/Special Filters
IVF-89 Inline Vacuum Filter with Element - 10 Micron Filtration VFC80-VFC90 Series/Special Filters

C-123 Outer Filter Cover (20-30 Micron) for F-123 Filter
C-45 Outer Filter Cover (20-30 Micron) for F-45 Filter VFC40-VFC50 Series
C-67 Outer Filter Cover (20-30 Micron) for F-67 Filter VFC60-VFC70 Series
C-89 (865 MEDIA) Outer Filter Cover (20-30 Micron) for F-89 865 MEDIA
835, 11 x 20 Outer Filter Cover (20-30 Micron) for F-89 Extra Large
C-89 Outer Filter Cover (20-30 Micron) for F-89 Filter VFC80-VFC90 Series
C-123 Outer Filter Cover 25 Micron Filtration VFC06-VFC30 Series

6012-1.50 & 6012.2.00 Plastic Filter Top/BTM; 1-1/2"Inlet

PV3 Pressure Relief Valve VFC30 Series
PV4 Pressure Relief Valve VFC40 Series
PV5 Pressure Relief Valve VFC50 Series
PV6 Pressure Relief Valve VFC60 Series
PV7 Pressure Relief Valve VFC70 Series
PV8 Pressure Relief Valve VFC80 Series
PV9 Pressure Relief Valve VFC90 Series

245P Standard Filter Element for Cyclo-Separator with Pre-Filter Special Filters

VV3 Vacuum Relief Valve VFC30 Series
VV4 Vacuum Relief Valve VFC40 Series
VV5 Vacuum Relief Valve VFC50 Series
VV6 Vacuum Relief Valve VFC60 Series
VV7 Vacuum Relief Valve VFC70 Series
VV8 Vacuum Relief Valve VFC80 Series
VV9 Vacuum Relief Valve VFC90 Series



Vacuum SystemsVacuum System Accessories
Ring Compressors/regenerative blowersRing Compressor/regenerative blower KitsRing Compressor/regenerative blower  Parts & Accessories
Rotating UnionsAbout Us/Contact UsHome

    Copyright © 2011 - Cary Manufacturing Corporation - Charlotte, North Carolina (NC) - 704-527-4402 - Sales@CaryMfg.com
